Outstanding Performance
Unique NEC Edge Comp for compensating backlight induced brightness reduction at the edges delivering best in class brightness uniformity.
·
Pre-calibrated displays from factory also allow for user hardware calibration thanks to the integrated 10 bit look up table (LUT) with the optional NEC calibration kit.
·
Unique NEC heat management enables the user to monitor and control the heat inside the display with user controllable fans. Very important for larger or recessed walls to avoid overheating.
·
Up to 100 displays can be controlled and managed through common sensor through daisychaining with supplied 3.5mm cables.
·
TileMatrix Memory for automatic adjustment of the integrated splitter when working with multiple inputs. This saves the cost of external switching equipment.
·
Peace of mind thanks to full control of the display via LAN with free NEC software and alert emails in the unlikely event of a problem such as overheating, back light failure etc.
Special Characteristics
Advanced fan control, Copy display settings through RS232, DICOM support, Hardware colour calibration possible, Input name adjustment, LAN with SNMP support, Matrix memory, OSD rotation for portrait mode, PIN as theft protection, Various picture in picture options, Programmable ambient light sensor, Rapid input switching, Scheduler, Screen saver functions, TileMatrix (10 x 10), User input priority definition

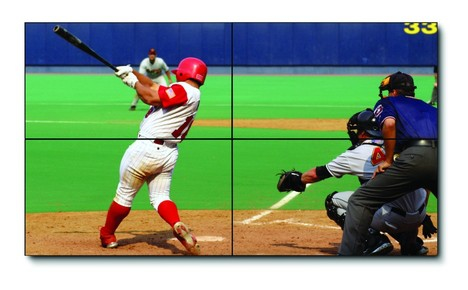

NEC's Evolution of videowall panels:

|

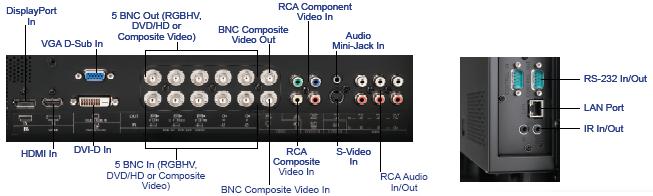

Video Input Terminals
|
