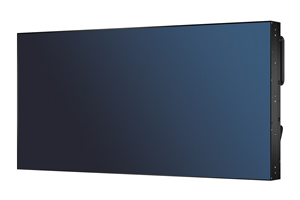

The X551UN reflects the latest advances in videowall product development featuring direct LED backlights as a light source, 1920 x 1080 resolution and a stunning 5,7mm bezel (content to content). NEC’s vast experience in the LCD videowall market accumulates in this product delivering unique features helping to reduce cost, making installations efficient and a video wall made of X551UN a powerful communication tool.
Being the best in class LCD videowall product, X551UN is an ideal solution for retail signage as well as control room applications, installations in airports, train stations and the rental market.
- Programmable Ambient Light Sensor -for reduced power consumption and eye pleasing brightness levels.
- Functionality -can be extended with additional interfaces and playback devices through the option slot which avoid additional cables and mounting brackets.
- DICOM support-for medical applications.
- Special Characteristics – Advanced fan control; Copy display settings through RS232; DICOM support; Hardware colour calibration possible; Input name adjustment; Matrix memory; OSD rotation for portrait mode; PIN as theft protection; Various picture in picture options; Programmable ambient light sensor; Rapid input switching; Scheduler; Screen saver functions; TileMatrix (10 x 10); User input priority definition
|
- Energy Efficiency Ambient light sensor ; LED backlight; Carbon savings meter
- Ecological Materials Mercury free; Optional feet ; Manuals on CD
- Ecological Standards Energy Star 5.0
|
|
|
|
| |
| Panel Technology |
SPVA (P-DID) |
|
| Viewable Image Size |
55 |
|
| Native Resolution |
1920 x 1080 |
|
| Pixel Pitch |
0.63 |
|
| Pixels Per Inch |
47 |
|
| Brightness (typical) |
700 cdm2 |
|
| Contrast Ratio (typical) |
4000:1 |
|
| Viewing Angle |
178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 |
|
| Refresh Rate |
60Hz |
|
| Aspect Ratio |
16:9 |
|
| Active Screen Area |
47.6 x 26.8 in. / 1209.6 x 680.4mm |
|
| Orientation |
Landscape/Portrait |
|
| Displayable Colors |
More than 16.7 million |
|
|
| |
| Synchronization Range |
| |
| Horizontal (Analog/Digital) |
31.5-91.1 kHz |
|
| Vertical |
50-85 Hz |
|
|
| |
|
| Input Signal |
|
| Video |
Analog RGB 0.7 Vp-p/75 Ohms |
|
| Sync |
Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive) |
|
|
| |
|
| Connectivity |
|
|
| Supported Video Formats |
720 x 400, 640 x 480, 800 x 600, 832 x 624, 1024 x 768, 1280 x 1024, 1600 x 1200, 1280 x 768, 1360 x 768, 1920 x 1080 |
|
| PC Signal Compatibility |
Yes |
|
| Macintosh Compatibility |
Yes |
|
| Input Terminals |
|
| Digital |
DisplayPort, HDMI, DVI-D |
|
| Analog |
VGA 15-pin D-sub, 5 BNC (RGBHV, DVD/HD or Video), BNC Composite, S-Video |
|
| Audio |
RCA Audio, Stereo Mini-Jack (2), DisplayPort Audio, HDMI Audio |
|
| External Control |
RS-232C, LAN, IR Remote, DDC/CI |
|
|
| |
|
| Output Terminals |
|
| Analog |
BNC Composite |
|
| Audio |
Stereo Mini-Jack, External Speaker Jack (2) |
|
| Digital |
DisplayPort, DVI-D |
|
| External Control |
RS-232C, IR Remote |
|
|
| |
|
|
|
|
|
| Power Consumption (typical) |
| |
| On |
190 |
|
| ECO Mode Standby |
<1W |
|
|
| |
|
| Physical Specifications |
| |
|
| Bezel Width (Left/Right, Top/Bottom) |
0.15 in./0.07 in., 0.15in./0.07in. ; 3.7mm/1.8mm, 3.7mm /1.8mm |
|
| Dimensions (WxHxD) |
|
|
| Net (without stand) |
47.8 x 27.0 x 5.0 in. / 1215.3 x 686.1 x 128.1mm |
|
|
| |
|
| Weight |
|
| Net (with stand) |
79.2 lbs. / 36 kg |
|
| Net (without stand) |
77 lbs. / 35 kg |
|
| Shipping |
72.8 lbs. / 33 kg |
|
|
| |
|
|
|
|
|
| VESA Hole Configuration Specifications - 400 x 400mm (4-hole) |
| |
|
| Environmental Conditions |
| |
| Operating Temperature |
41-104°F / 5-40°C |
|
| Operating Humidity |
20-80% |
|
| Operating Altitude |
13,780 ft. / 4200m |
|
| Storage Temperature |
-4-140°F / -20-60°C |
|
| Storage Humidity |
10-90% |
|
| Storage Altitude |
40,000 ft. / 12,192m |
|
|
| |
|
| Limited Warranty (parts & labor, including backlight) - 3 years |
| |
|
| Additional Features |
| |
- Ultra-narrow bezel
- Advanced thermal capabilities
- Advanced cooling system
- Sealed panel design
- Thin bezel
- TileMatrix (10x10)
- TileComp
- Separate group/Monitor ID function
- CableComp+
- Ethernet Control and Communication
- RS-232 Control and Communication
- Landscape/portrait capable
- Carbon footprint meter
- Plug and Play (DDC/CI, DDC2B)
- Scheduler (w/ real-time clock)
- Sharpness/softness adjustment
- Screen saver function
- Ambient light sensor (AmbiBright)
- 6-axis color adjustment
- Metal rear cabinet
- POP
- Side-by-Side
- Kensington lock
- Handles
- Variable picture modes
- Advanced video settings (Noise Reduction, Adaptive Contrast)
- Input labeling
- Backlight adjust
- Aspect ratio control
- Built-in speakers
- 10-bit color over HDMI
- OPS/Expansion slot
- LED Direct-lit Backlighting
|
|
|
|
