NexNix Ltd: Orion Infinite MIS-4220 Bezelles 42" Plasma Display

Pricing
Please call for pricing.
Please contact us here for quantity pricing and further info on screens and mounting options.

General Info
The Infinite Plasma has a seam of less than 4mm between each panel and has no side covers ensuring unbroken continuity of image.

The MIS-4220 has an increased contrast and brightness over the older model (MIS-4201) combined with the new anti-reflective surface, making them the perfect screens for high ambient light environments including shopping malls, shop windows and reception areas.

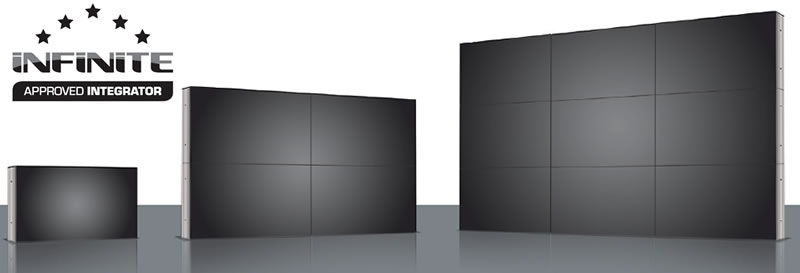

The modular design allows you to create any combination of screens, from a single row or column of panels in either portrait or landscape orientation to large video walls spanning dozens or even hundreds of square metres.

Irregular shapes and aspect ratios are easily conceived and realised thanks to the unique bezel-less modular design, resulting in unbeatable flexibility and visual impact.

Using plasma technology, MPDP saves room and minimizes weight considerably compared to other large displays such as rear projection systems. As the total thickness is just 25cm including stand or wall-mount brackets, MPDP is the perfect choice for large applications in a confined space.

Connections & Control

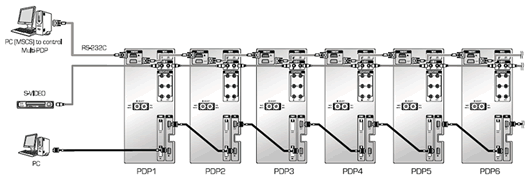

Each screen is connected through a daisy chain link (as shown above). This allows you to create your array of screens without distibution amplifiers although the amount of screens that can be daisy chained is limited and changes depending on the video input used.

The video inputs available are Composite, S-Video, Componet and DVI. We would advise using DVI for the best possible image quality.

The screens are controlled through RS232 and this can also be daisy chained (again the amount of screens in the chain limited).

Using the MSCS (Multi-Screen Control System) software you can control anything upto an 8x8 configuration (larger setups would require external control systems). This allows you to control how the video is distributed to the screens without the need for a seperate control box.

For more info on connecting and controlling the MIS-4220's please contact us.

Specification
Aspect Ratio: 16:9
Resolution: 853x480
Inputs: DVI, VGA, Component, S-Video, Composite, RS232
Outputs: DVI, VGA, Component, S-Video, Composite, RS232
Size: 42"
Bezel AirGap: Less than 4mm gap in multi formations
Weight: 27Kg
Power Consumption (Maximum): 300W

Downloads

Infinite MIS-4220 Brochure
Infinite MIS-4220 Manual

Please see our gallery for a selected few of our recent Audio Visual installations!!!
